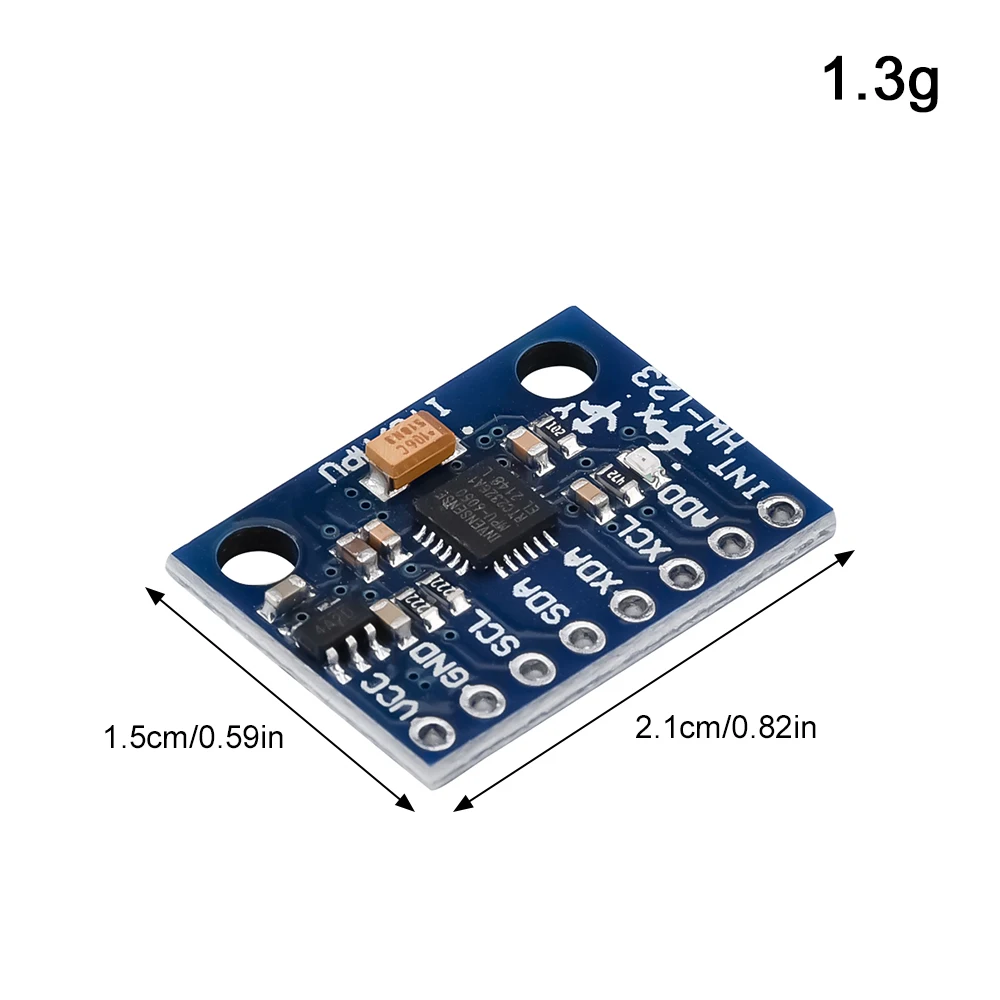

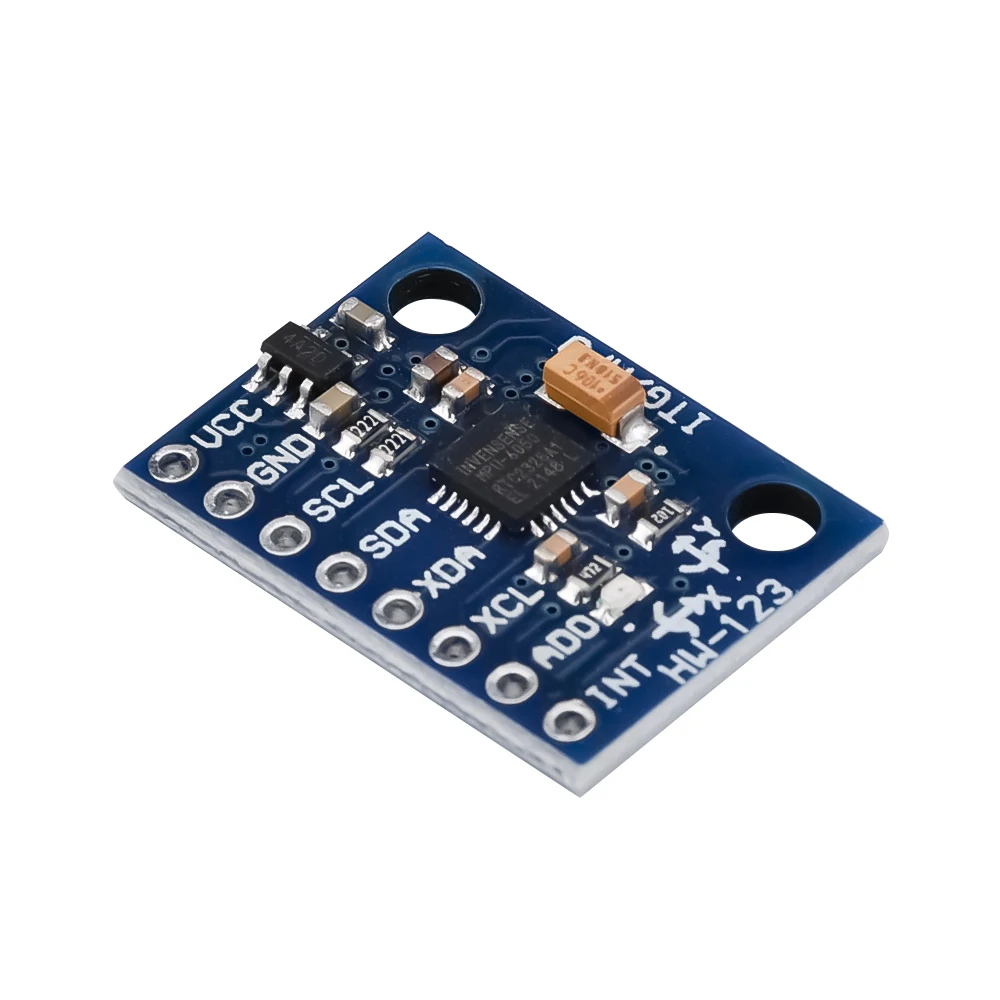

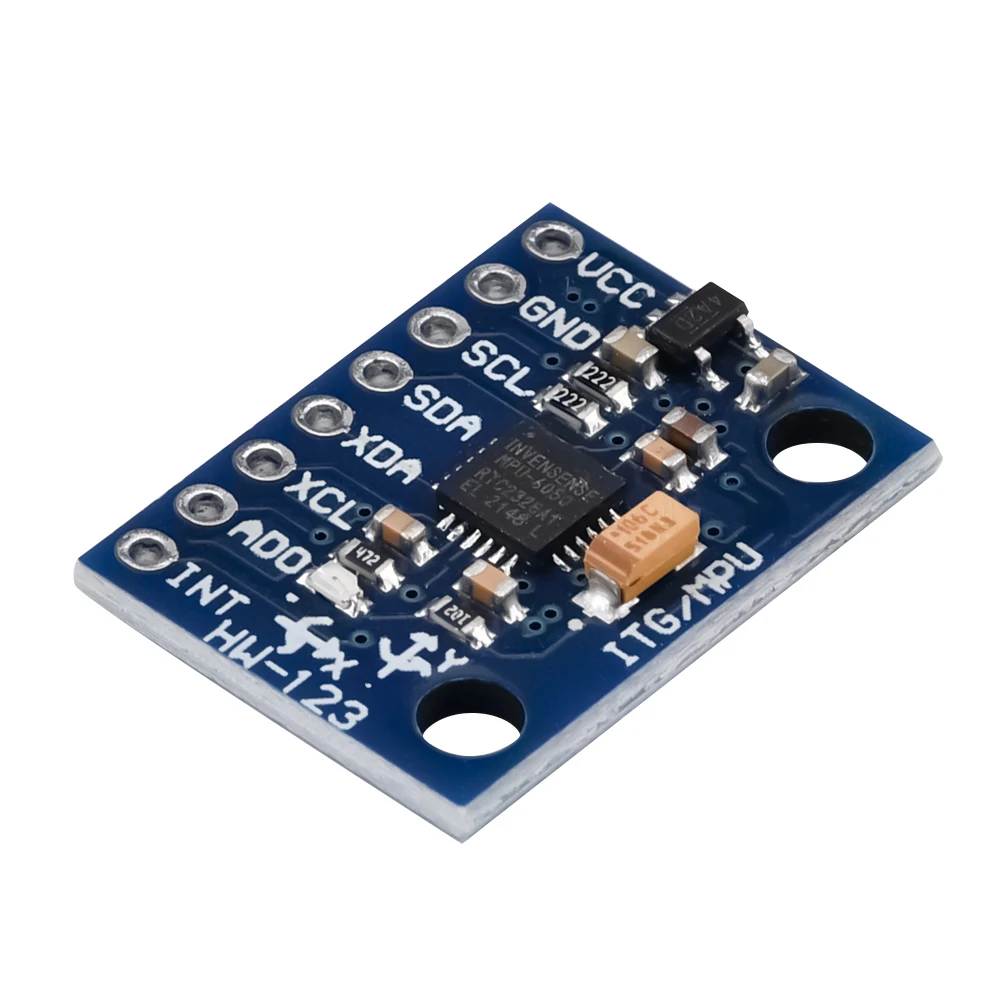

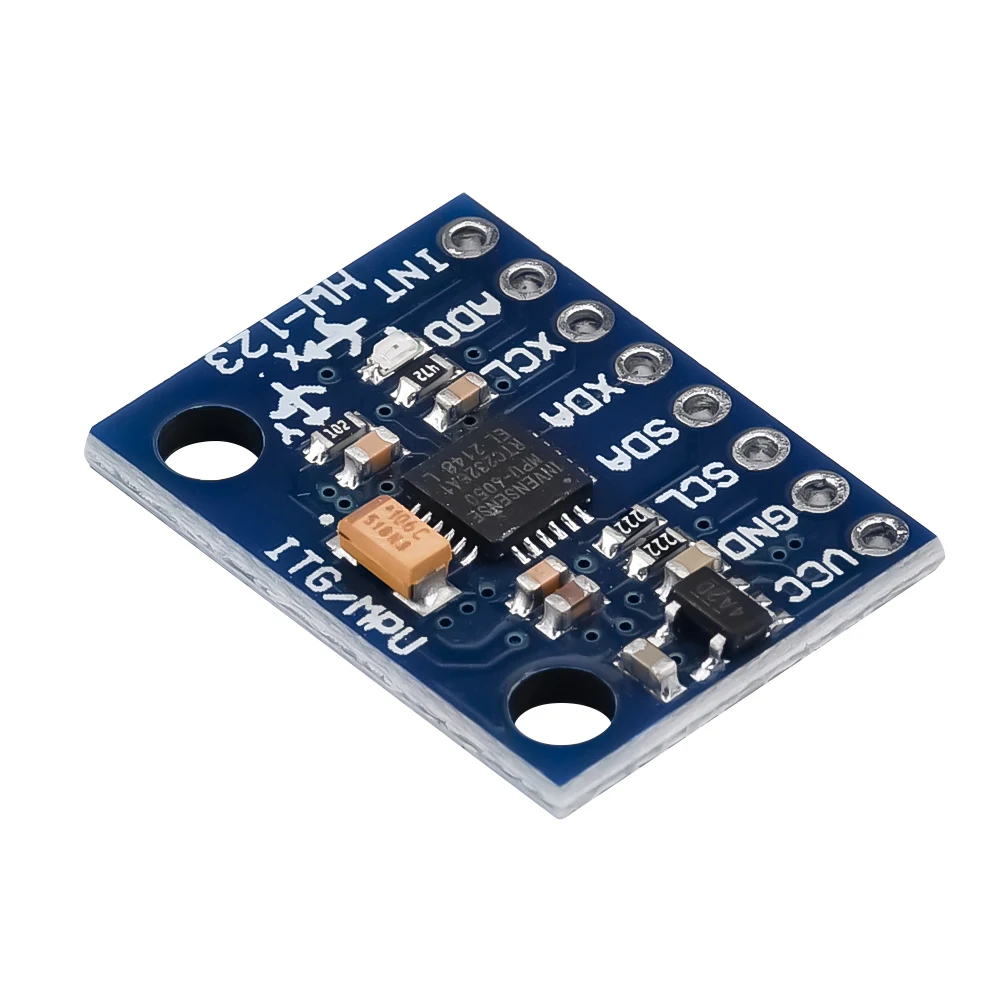

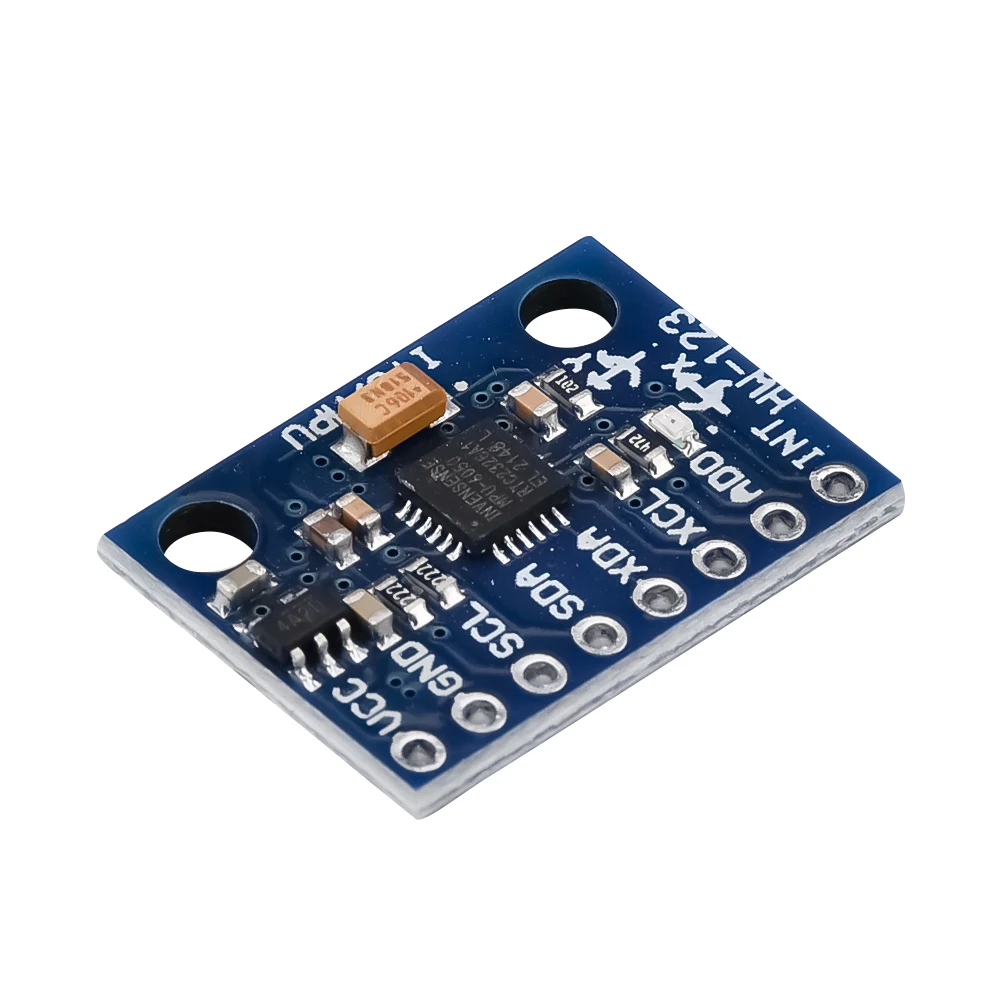

MPU-6050 MPU6050 3 Axis Accelerometer Gyroscope Module 6 DOF 6-axis Accelerometer Gyroscope Sensor Module for Arduino

Product features:

1. Output fusion calculation data of 6-axis or 9-axis rotation matrices, quaternions, and Euler angle formats in digital format.

2. A 3-axis angular velocity sensor (gyroscope) with a sensitivity of 131 LSBs/°/sec and a full cell sensing range of ± 250, ± 500, ± 1000, and ± 2000 °/sec.

3. A 3-axis accelerator that is programmable and has a control range of ± 2g, ± 4g, ± 8g, and ± 16g.

4. Remove the sensitivity between the accelerator and gyroscope axes to reduce the impact of settings and sensor drift.

5. Digital Motion Processing (DMP) engine can reduce the load of complex fusion calculation data, sensor synchronization, posture sensing, etc.

Product parameters:

Using chips: MPU-6050

Power supply: 3-5V (internal low voltage differential stabilization)

Communication method: Standard IIC communication protocol

The chip is equipped with a 16 bit AD converter for 16 bit data output

Gyroscope range: ± 250, 500, 1000, 2000 °/s

Acceleration range: ± 2 ± 4 ± 8 ± 16g

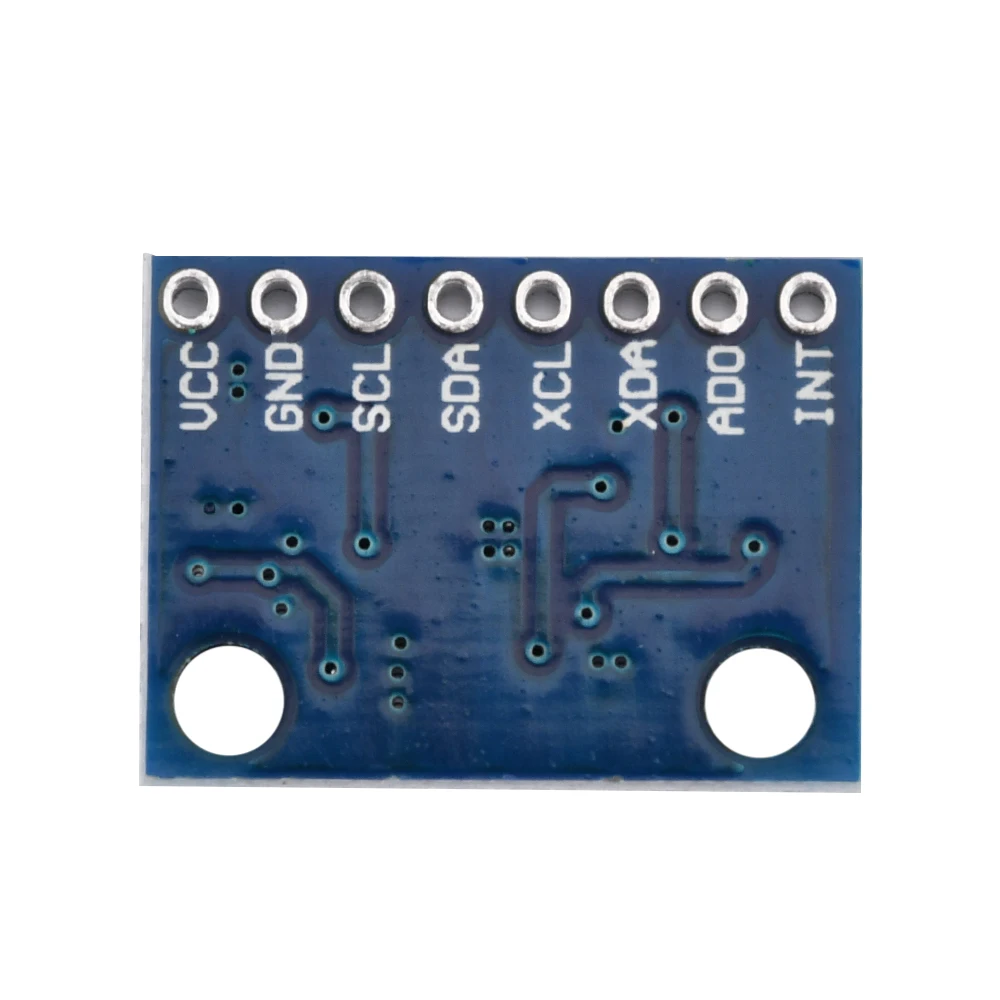

Pin spacing 2.54mm

Application:

Motion sensing game

Augmented Reality

Electronic Image Stabilization (EIS)

Optical Image Stabilization (OIS)

Pedestrian navigator

Zero touch gesture user interface

Shortcut for posture

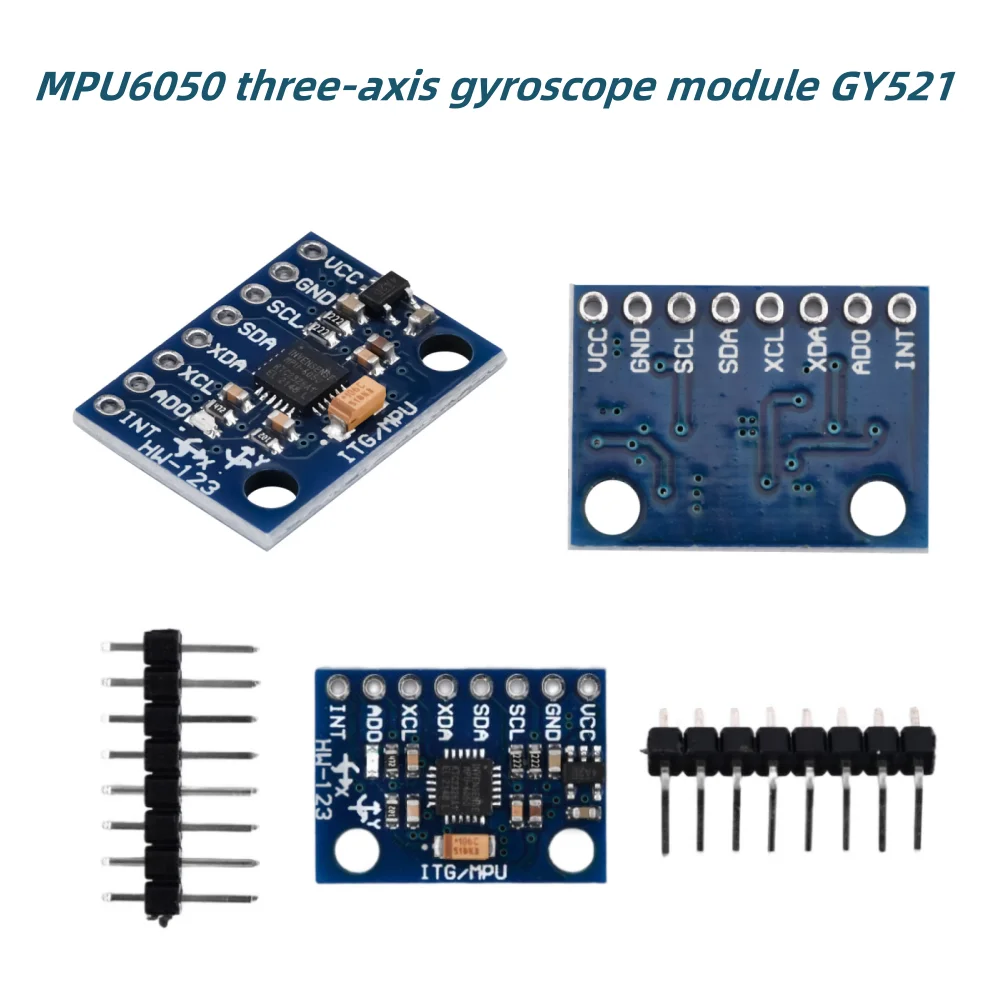

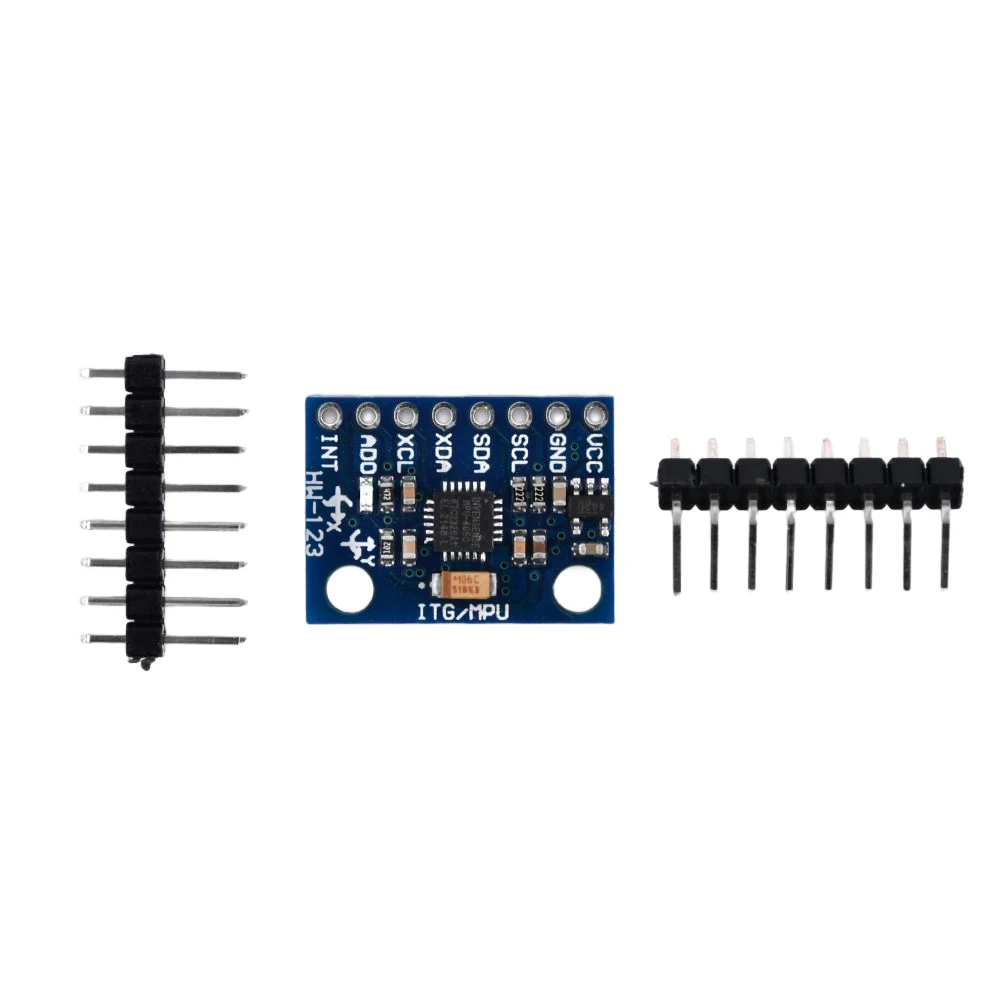

Package List:

Gyroscope module * 1

Pin arrangement * 2
