Plastic Mini Injection Molding Machine Polymer ABS PVC USB Head Switch Plug Toys Injection Molding for Teaching Experiment

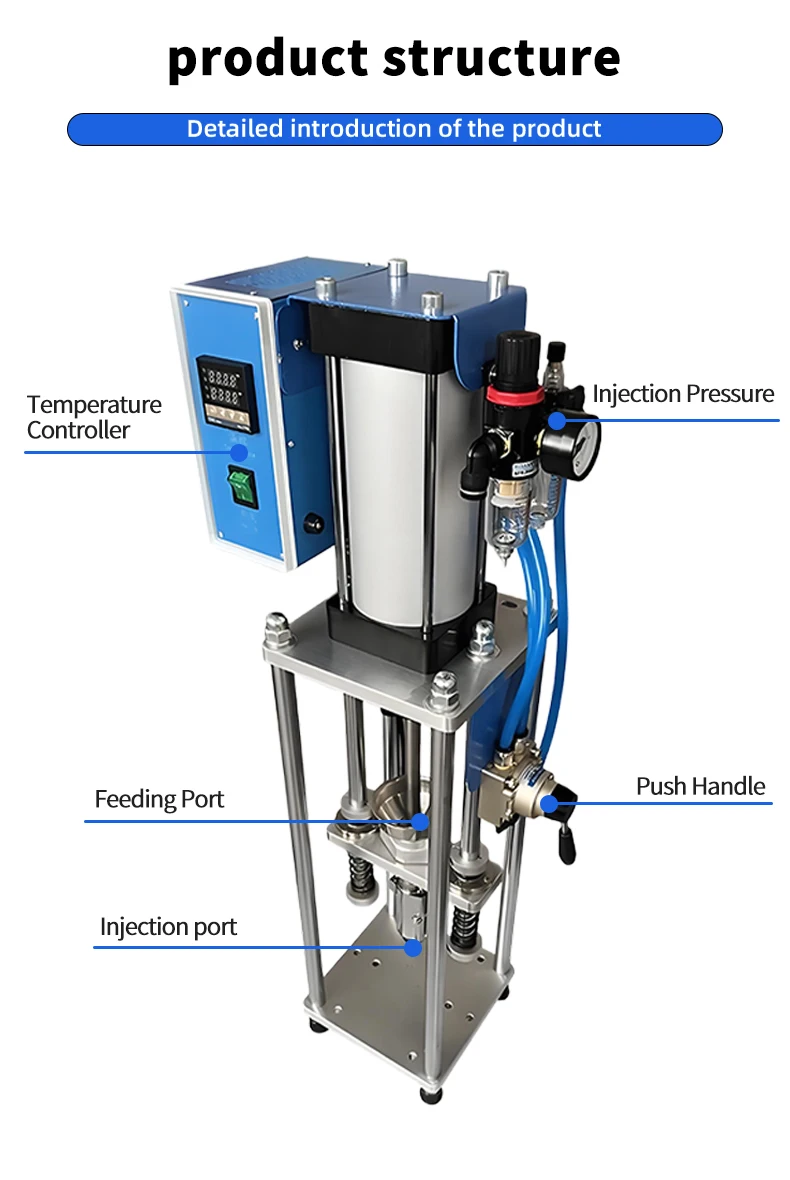

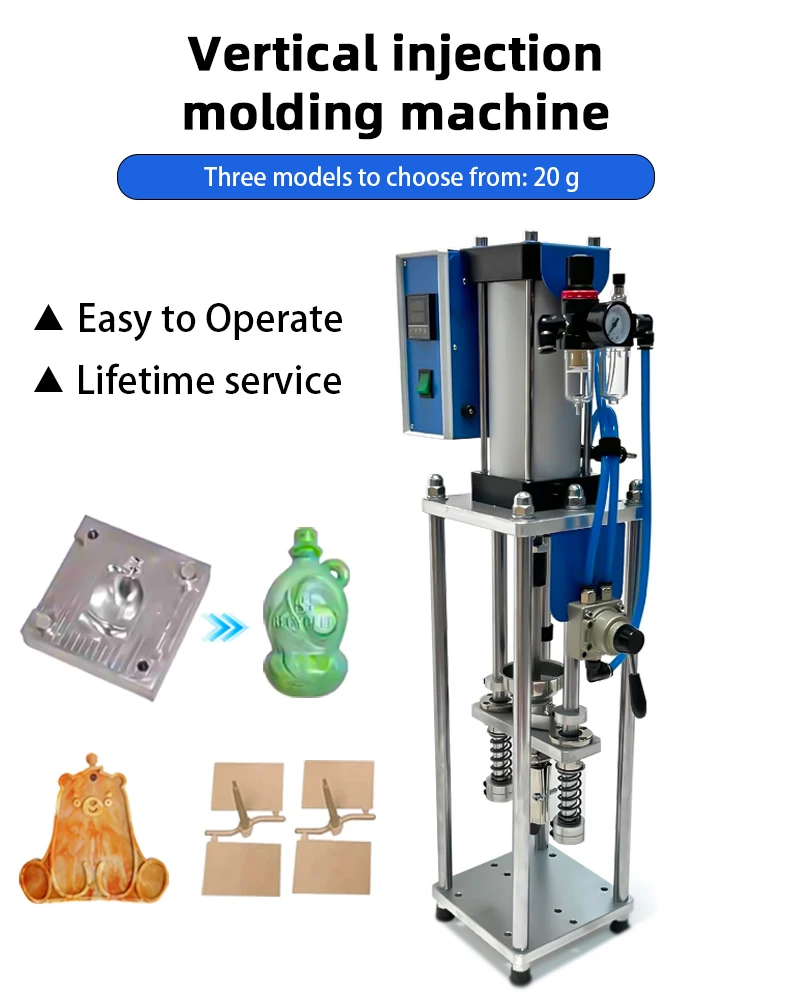

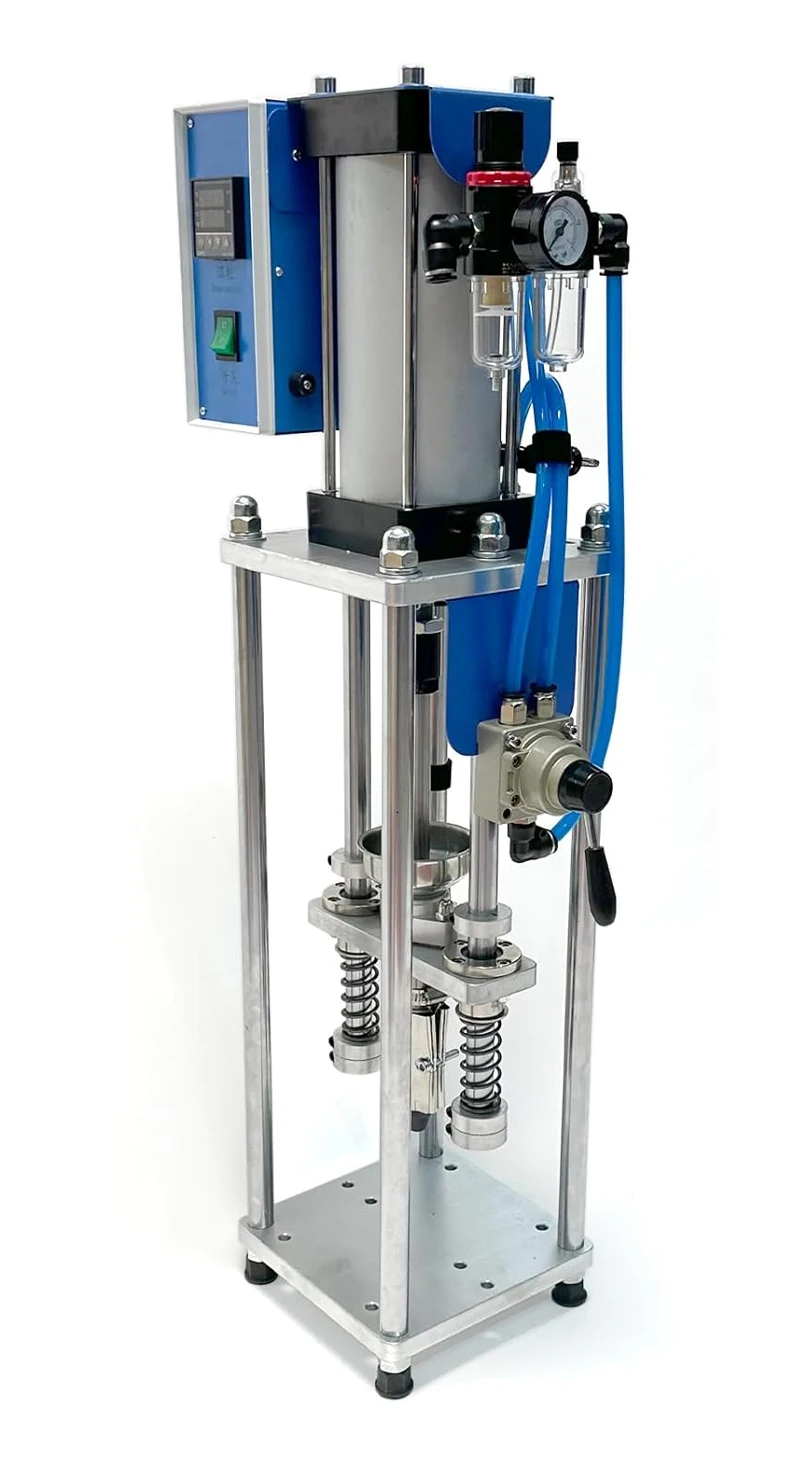

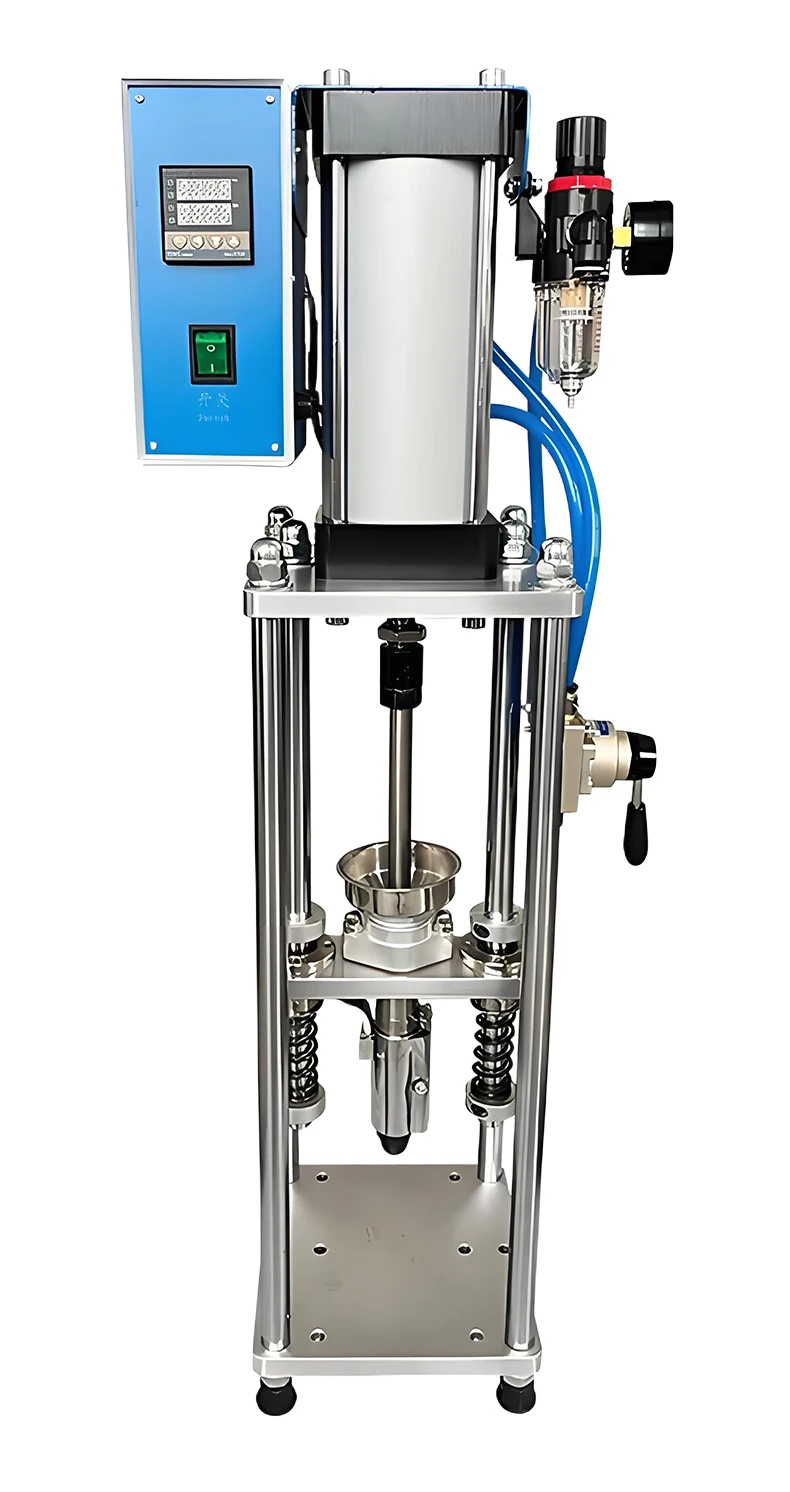

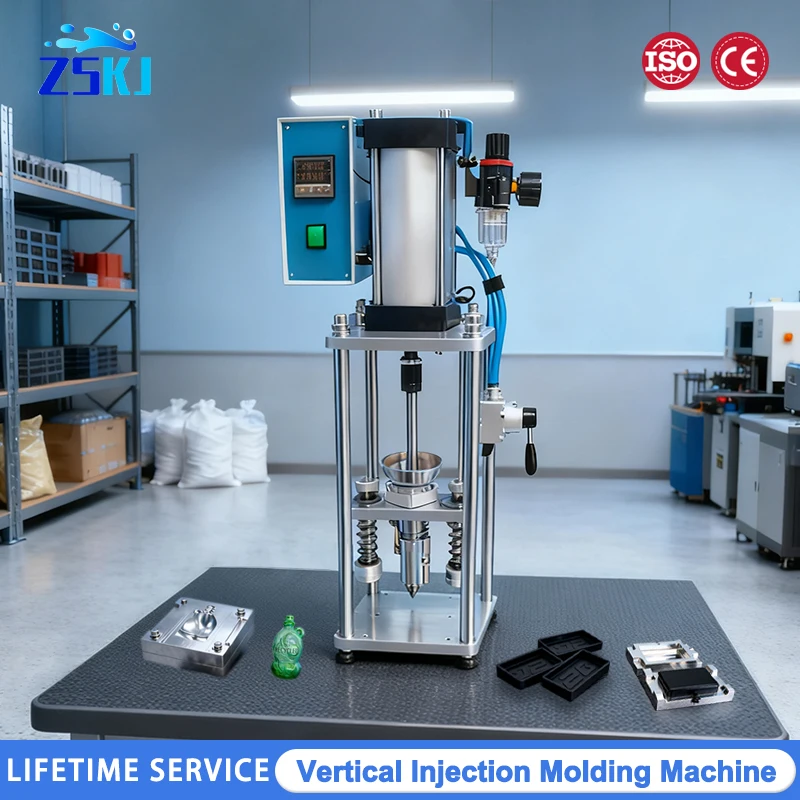

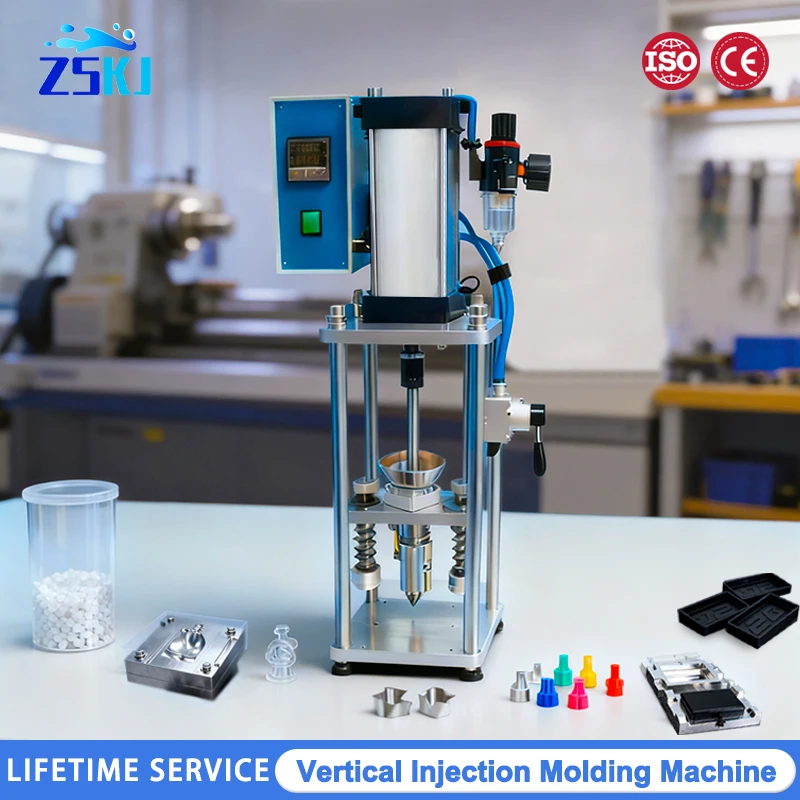

Small desktop vertical injection molding machine

Small-batch plastic injection molding, compact and easy to move.

Product Introduction

1. Application scenarios: Suitable for experimental color plates, rheology experiments, teaching experiments, small-batch product production, etc.

2. Product injection molding: Mainly product structure. Please send pictures or drawings of your injection molded parts to confirm whether they can be injection molded.

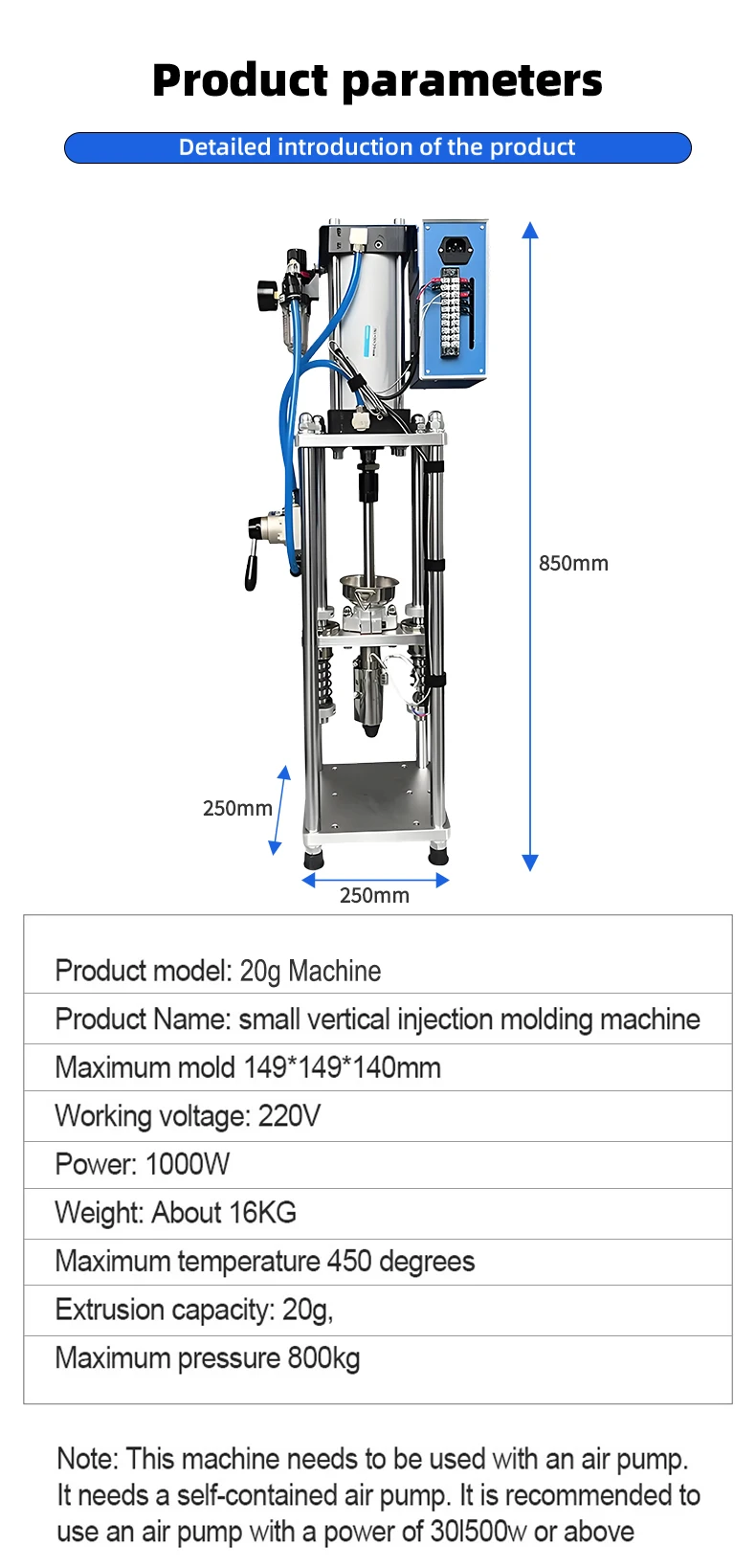

3. Basic parameters:

Power supply voltage: 220v, power 1kw

Air pressure requirement: 0.6Mp-0.8Mp

Heating temperature: Adjustable from 0 to 350 degrees

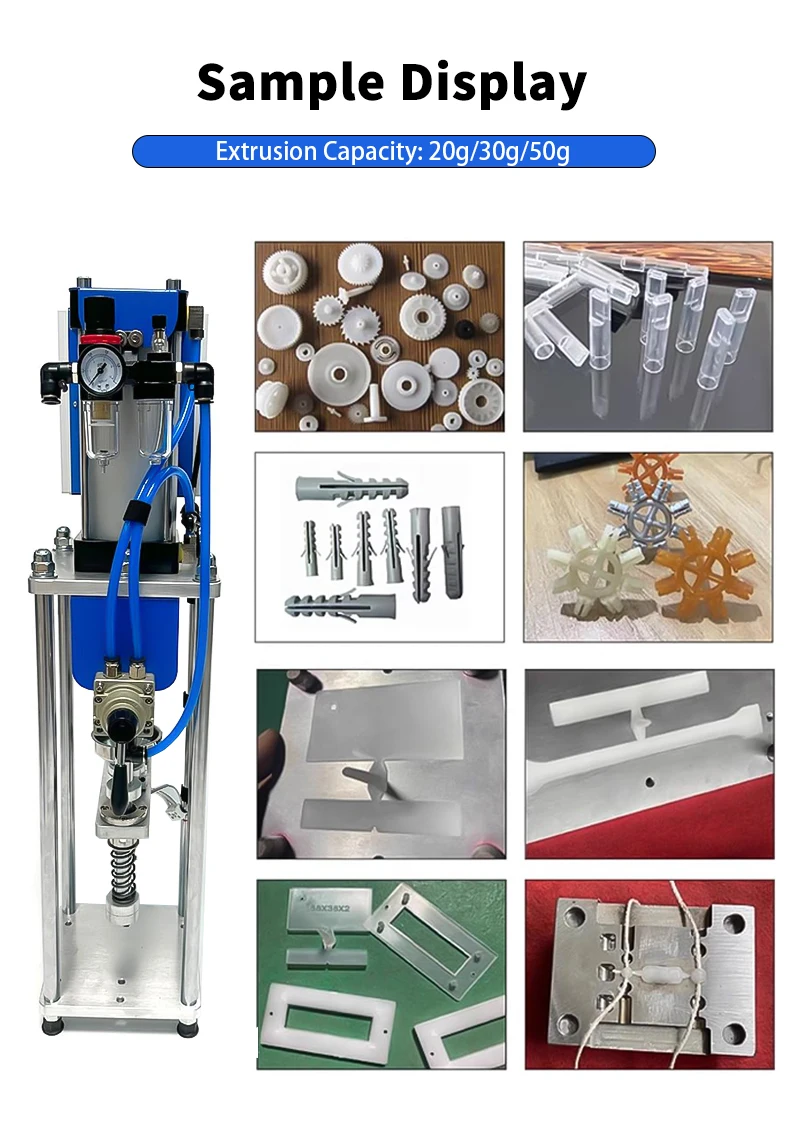

Injection molding volume: 1-20 grams (based on the typical material value of 5 grams)

Plunger diameter: 12-16mm

Nozzle inner diameter: 2.5mm

Injection mode: (Electric switch) Single injection

Maximum mold size: 20*20*8cm (length, width, height)

Machine size: 30*20*80cm

4. Applicable materials: All injection molding materials available on the market are basically applicable, and materials with good heat resistance are the best.

5. Regarding molds: The product price does not include molds. Molds can be customized. For details, please consult our customer service.

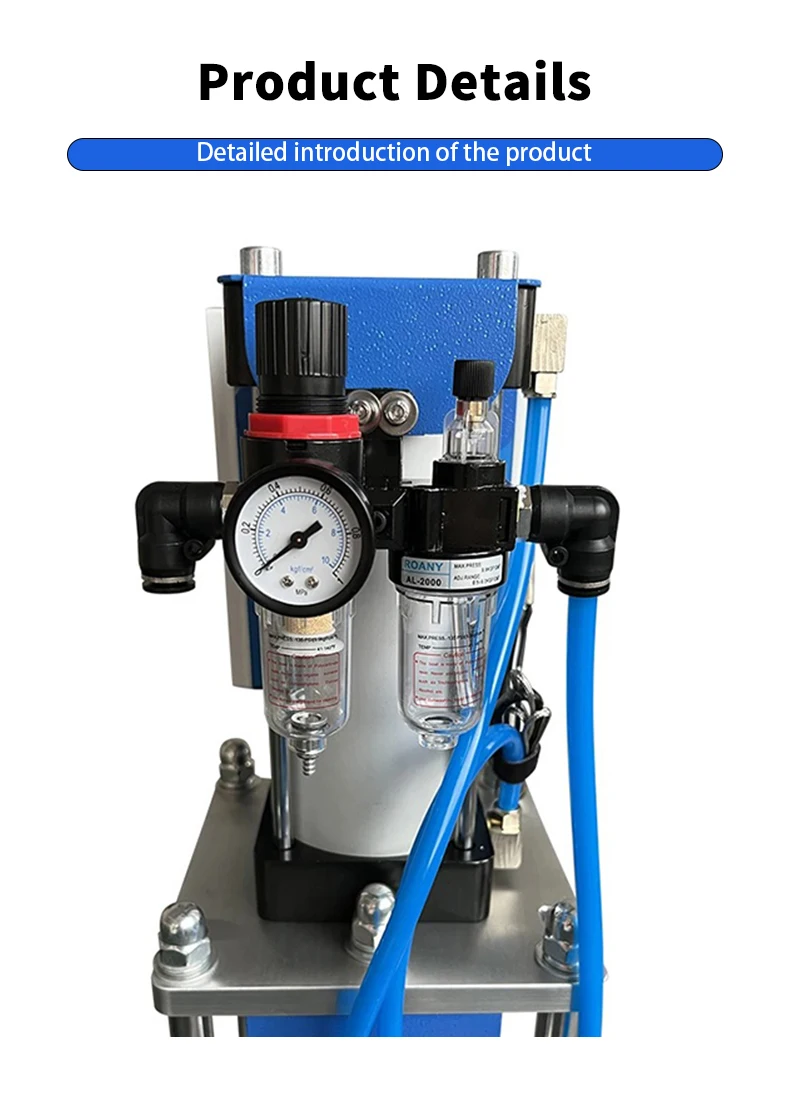

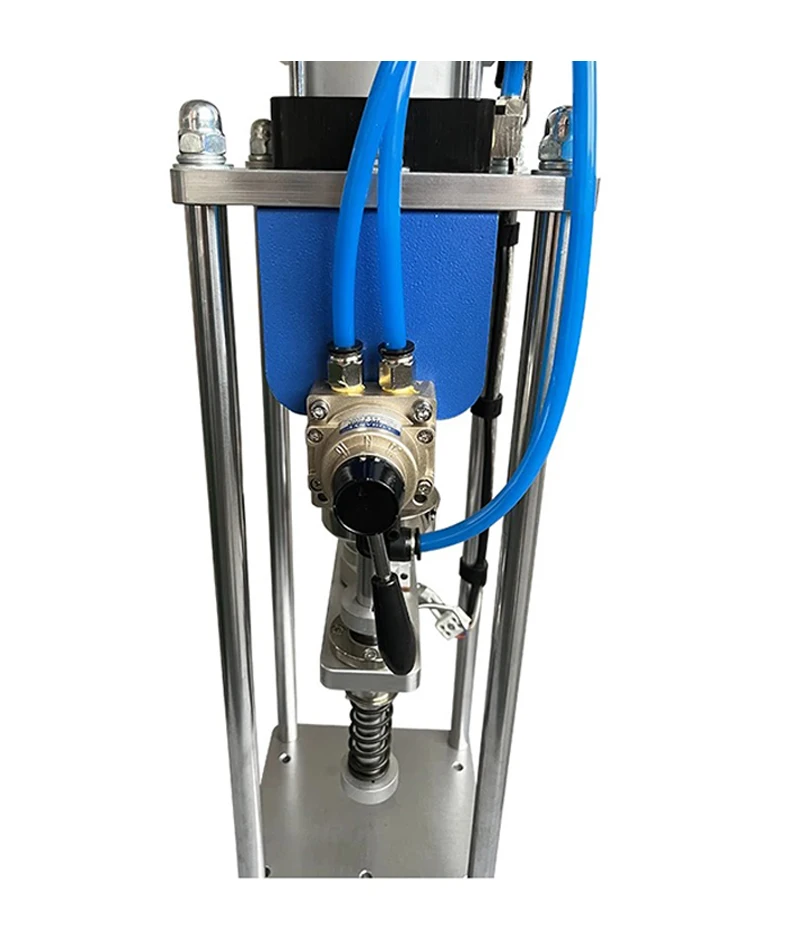

6. Regarding the air pump: The injection molding machine requires air pressure drive and needs to be equipped with an air pump (air compressor) by itself. The recommended air pump is 0.8mpa, and the gas capacity should not be less than 30 liters. The larger the capacity, the better
