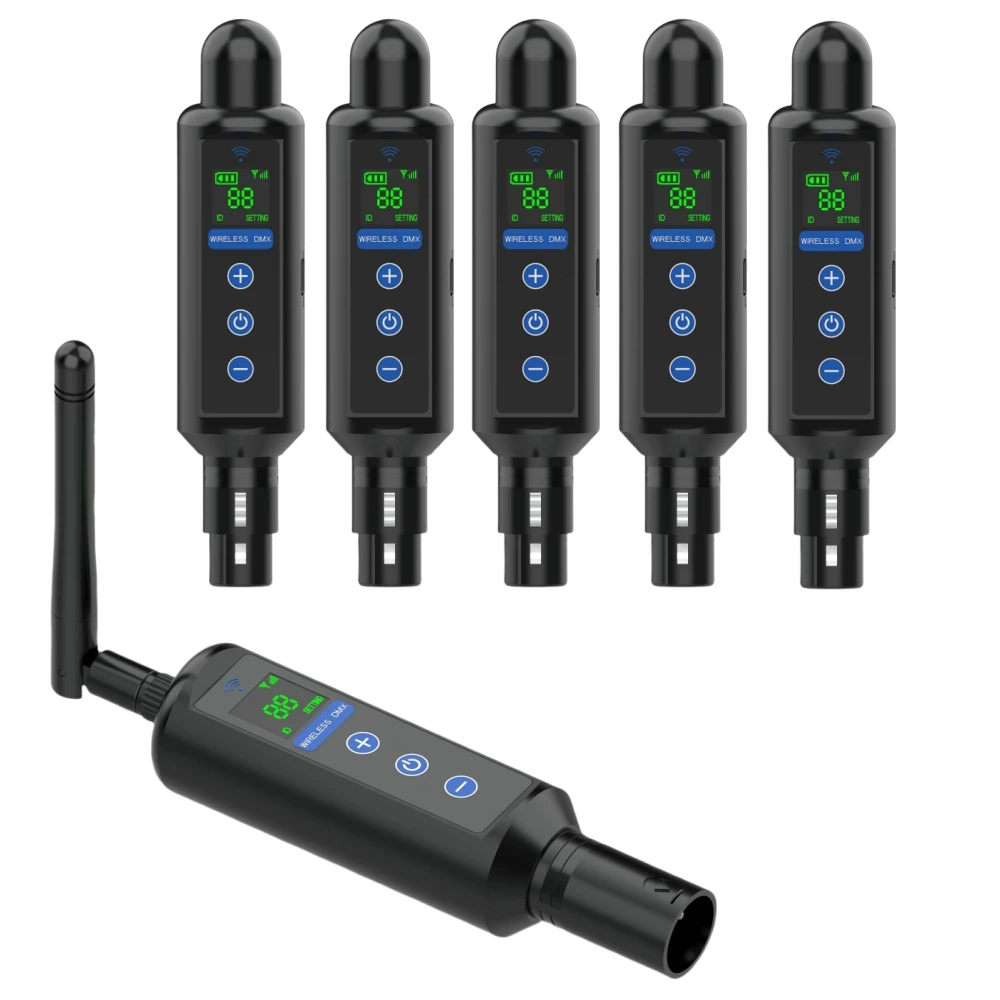

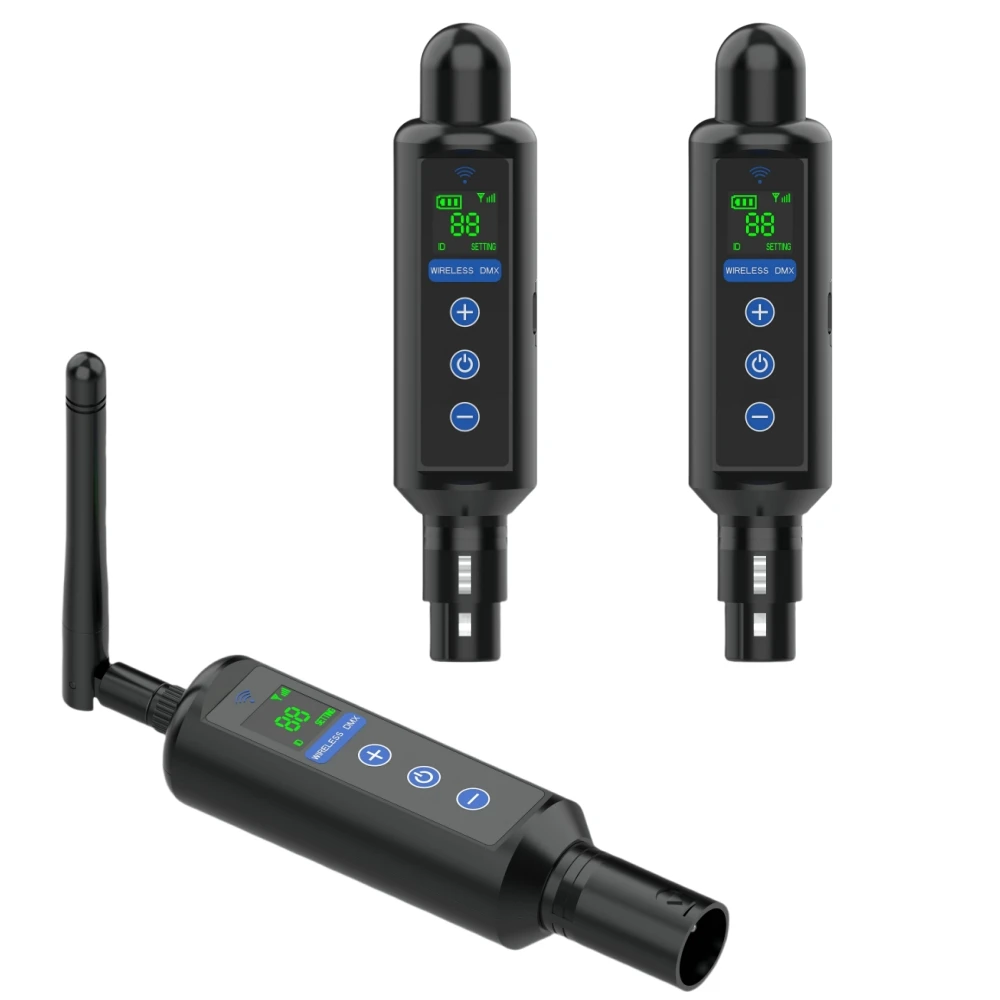

Super wireless dmx Receiver Transmitter 2.4G DMX Controller Stage Lighting Control for LED Stage Disco Party Bar Lighting

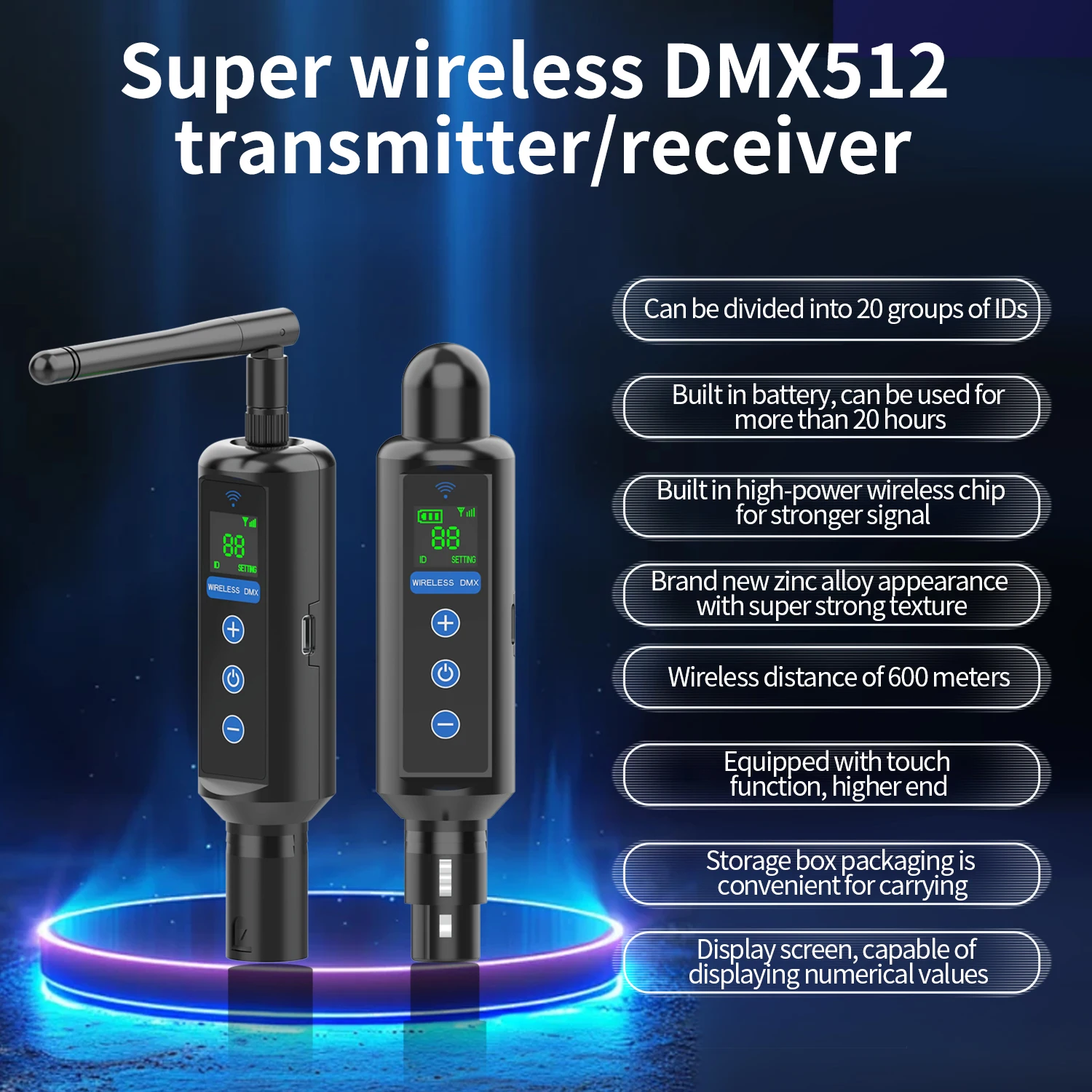

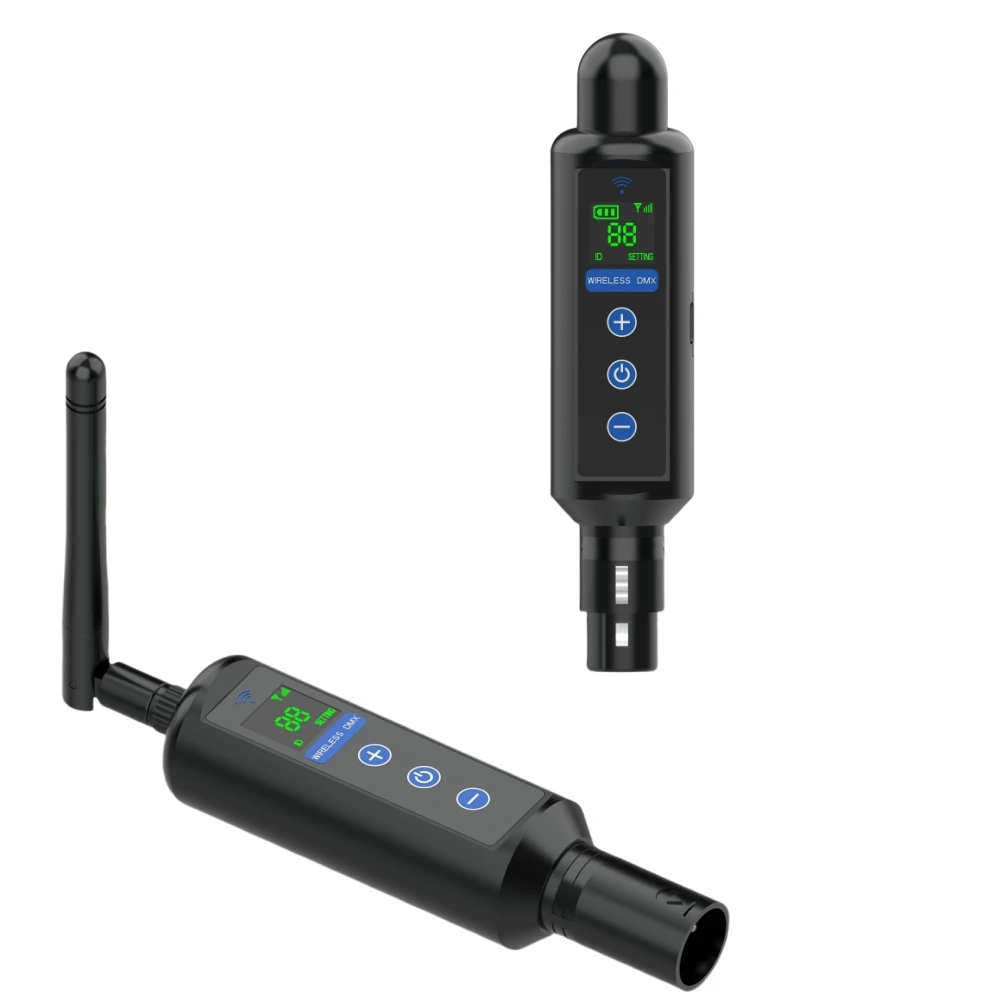

2025 Latest Super Wireless DMX512 Transmitter/Receiver

The most powerful feature.

Parameter：Input voltage: 5V 1A Power input: 5VDC,±5%
Power consumption: 5W

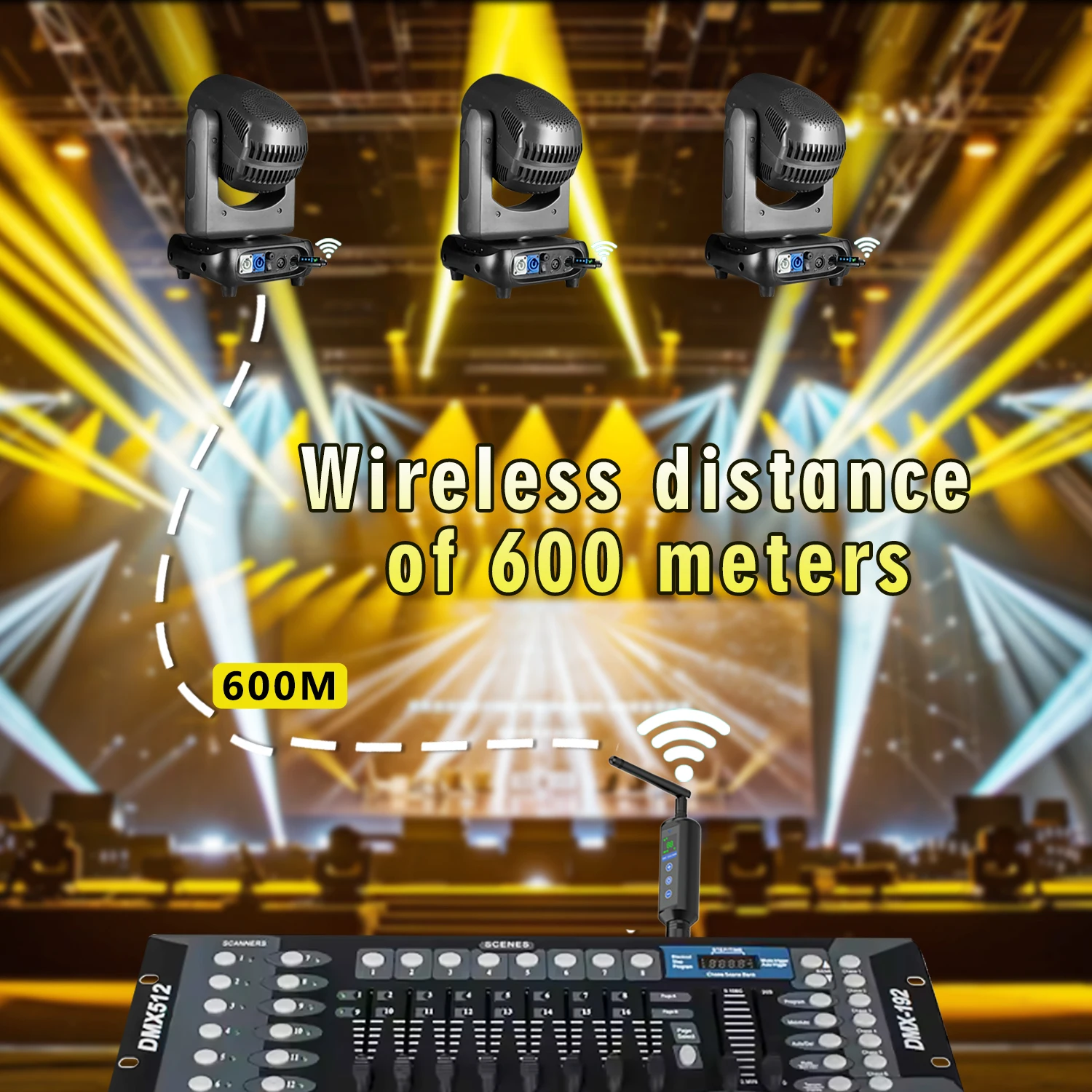

Communication distance: 600 m
working band: 2.400-2.4835GHz, ISM, 126 bands
modulation mode: GFSK
Maximum transmit power:23dBm

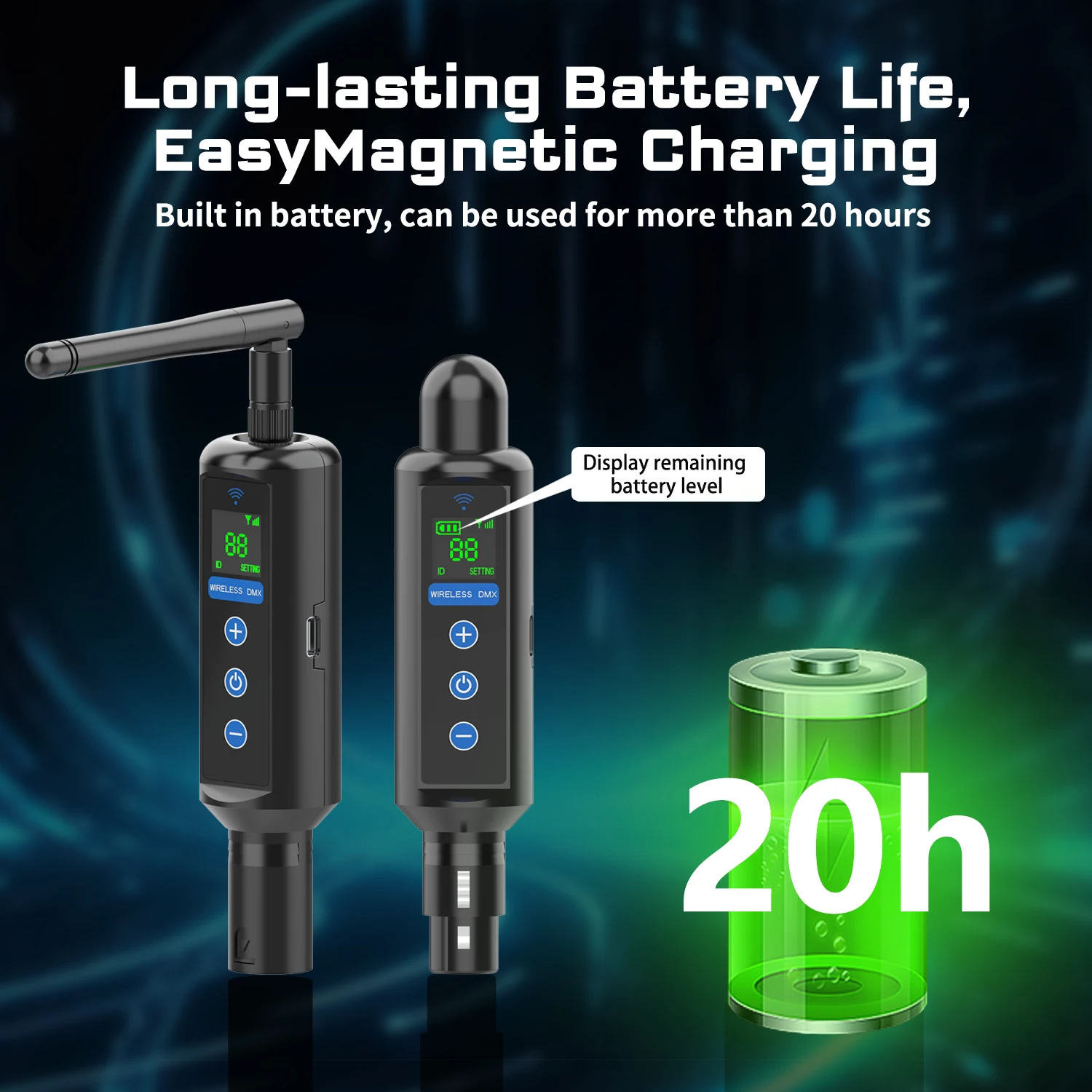

Battery capacity: 750 mA
Charging time: 3 hours
Use time: 20 hours
Receiving sensitivity: -94dBm
DMX signal interface: RS485
Reliability: Auto restart timer: Built-in WDT
System information: CPU: 32-bit ARM core
Operating temperature: -40 ~ 85 ° C, 5 ~ 95% RH humidity
storage temperature: -65 ~ 150 ° C, 5 ~ 95% RH humidity

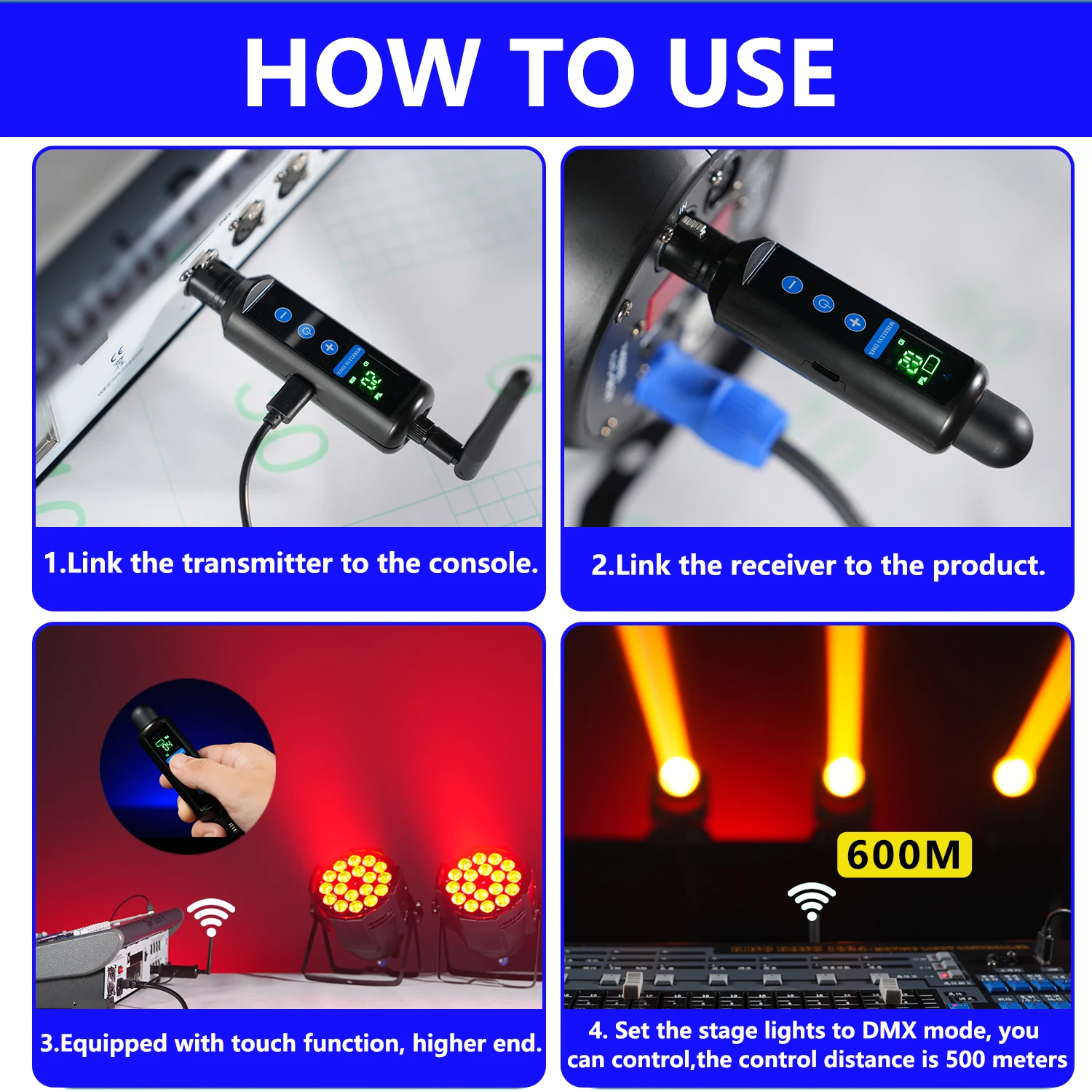

Control mode: controlled by DMX512 console. The transmitter is plugged into
the dmx console, the receiver is plugged into the fixture

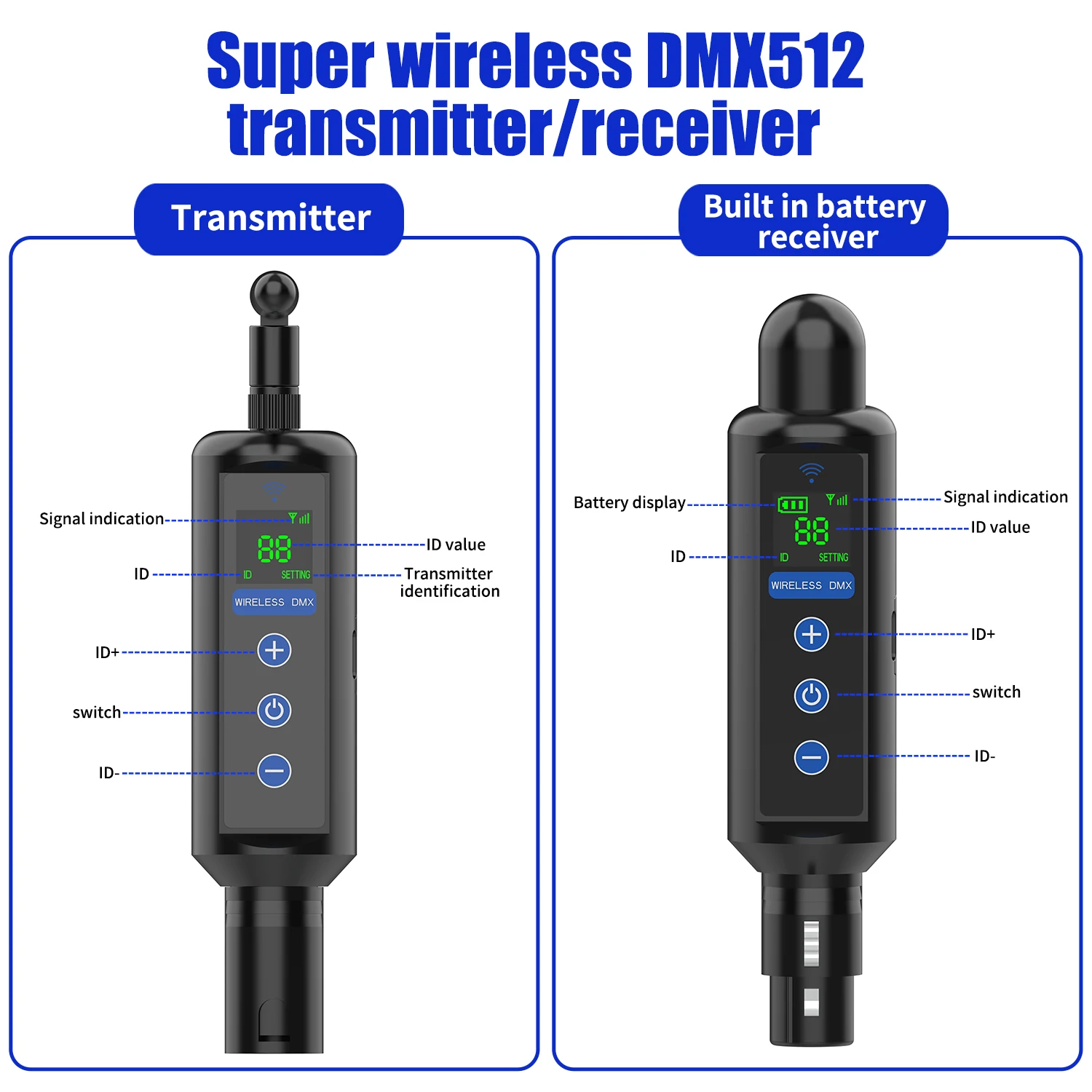

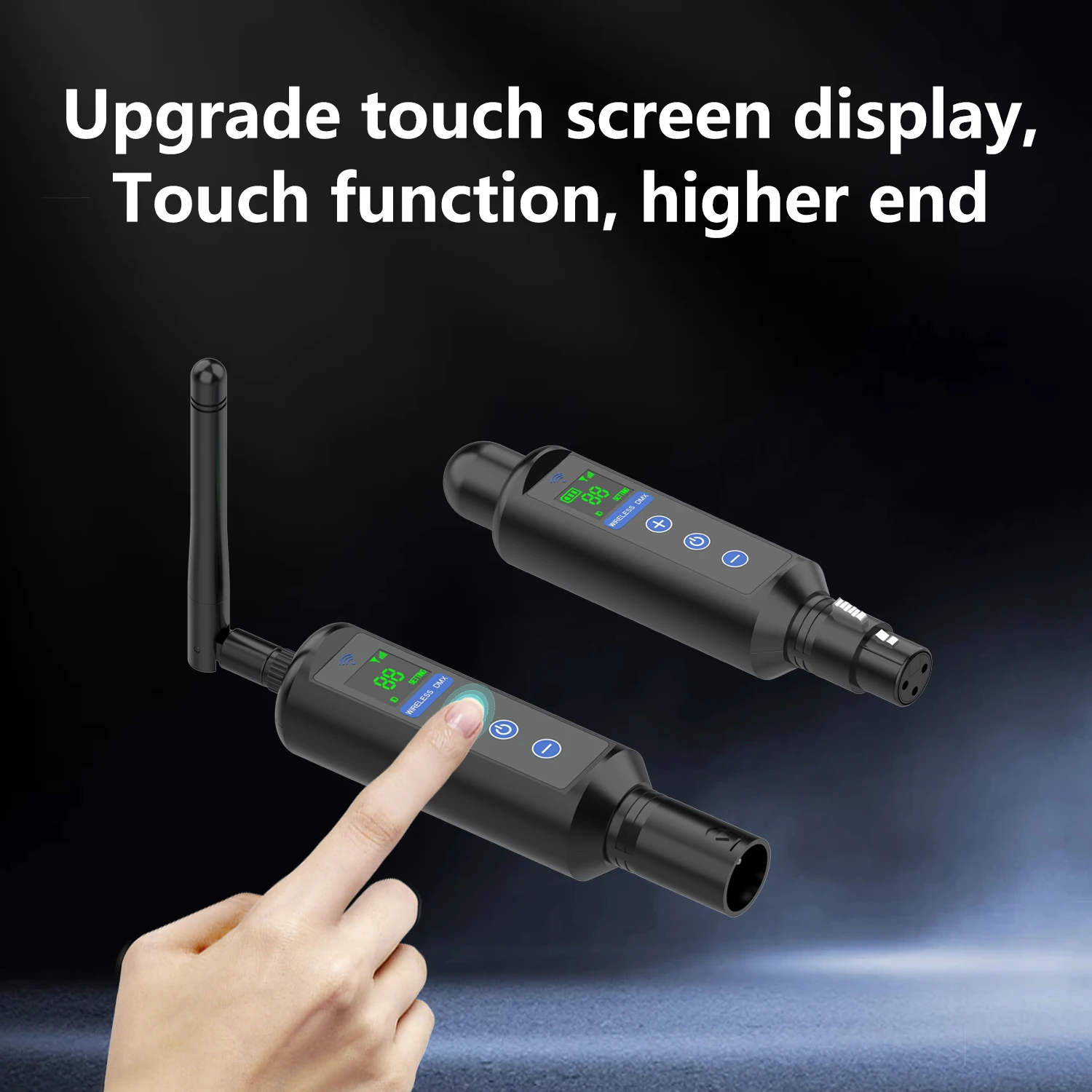

Service life: 10 yearsOperating Instructions：1. Receiver: Press and hold the touch switch, wait for it to turn on, then press
and hold the touch switch again to turn off. Transmitter: It will automatically turn on after being powered on. Touch switches
can be used for power on and off.

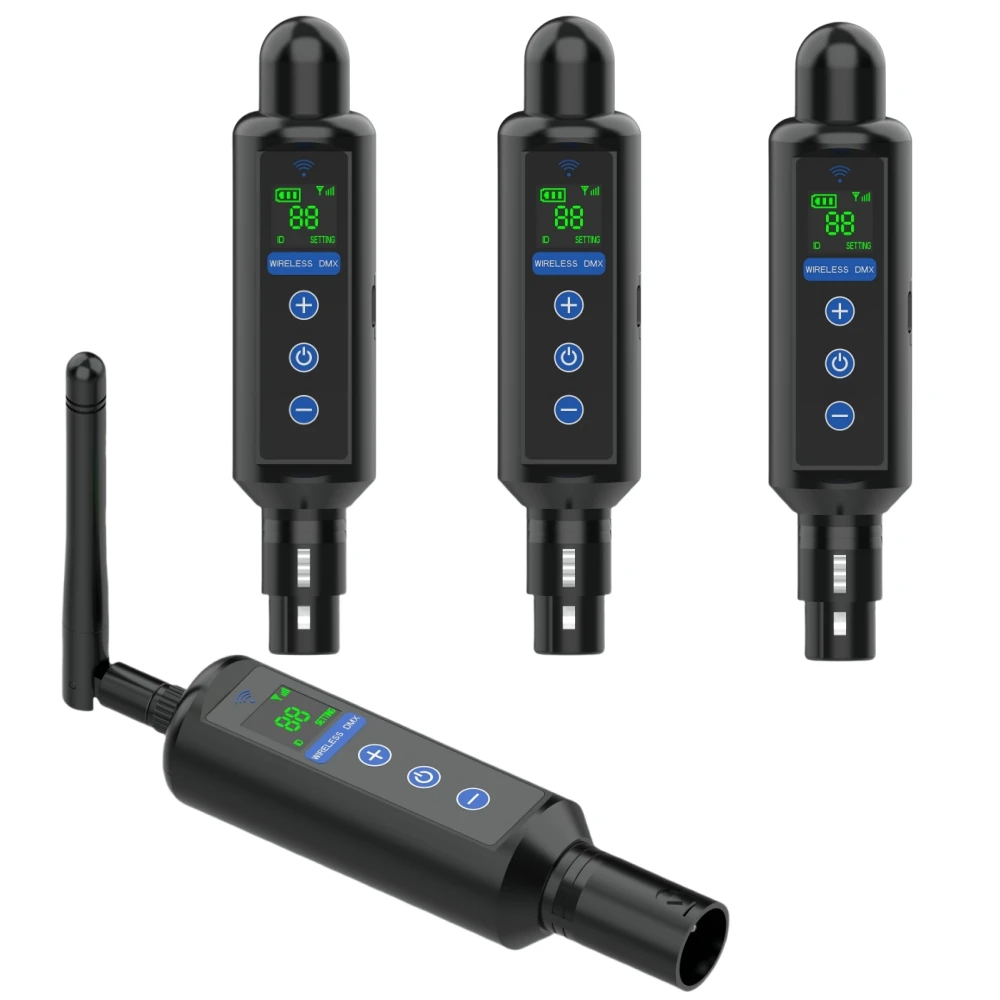

2. The device can be divided into 20 groups of IDs, with the same number set for
each group of transmitters and receivers. 20 transmitters can be used
simultaneously.
3.When the transmitter and receiver are connected to the signal, the signal
indication will flash. (If there is no flashing, the transmitter and receiver are not
connected successfully)
4. Battery powered receiver: Charge for 3 hours. The usage time is 20 hours.Scope of application: stage lighting, large-scale cultural performances, stadium lighting, temporary

stage performances, city lighting system, television
TV stations, conference centers, professional theaters, theme parks, dance halls,
bars and small cultural performances, etc.
